Bootstrapping the environment

This section describes how you can run the orchestrator-core, orchestrator-ui, and netbox with Docker Compose. We have this all setup in our docker-compose.yml file so that you don’t have to think about how to start the applications required for this workshop!

The following Docker images are used in this workshop:

• orchestrator-core: The workflow orchestrator step engine.
• example-orchestrator-ui: An example GUI implementation for the orchestrator-core.
• netbox: An open source IPAM and NSoT system.
• postgres: The PostgreSQL object-relational database system.
• redis: An open source in-memory data store.
• containerlab: A free network topology simulator that uses containerized Network Operating Systems.

Prerequisites

The following software is required on your machine to follow this workshop:

• docker-compose
• containerlab

macOS on Apple Silicon

Note

This only applies to ARM / Apple Silicon (M-series) Macs. On Linux and Intel machines a standard Docker install works — skip to Step 1.

Docker runtime (colima + virtiofs). On Apple Silicon the containerlab SR Linux nodes need a Docker VM that mounts host paths with virtiofs and has enough memory. The default Docker Desktop VM and colima’s legacy sshfs mount both break the nodes in two ways:

• virtiofs, not sshfs. SR Linux generates a TLS keypair at boot and chowns it. sshfs forbids chown even as root, so the keygen fails, sr_linux_mgr crash-loops, and no management server (JSON-RPC / gNMI / gRPC) ever comes online.
• ≥ 8 GB VM memory. Each SR Linux node reserves ~2 GB; on a smaller VM the kernel OOM-killer keeps killing sr_mgmt_server and the nodes never settle.

Use colima as the Docker runtime:

brew install colima docker

# vm-type vz + virtiofs is the Apple Silicon path; 8 GB / 4 CPUs runs the
# compose stack and the 3-node lab together.
colima start --vm-type vz --mount-type virtiofs --memory 8 --cpu 4

Confirm the VM before continuing:

colima status | grep mountType   # -> mountType: virtiofs
colima ssh -- free -h            # Mem total should be ~8 GB

Do not run Docker Desktop at the same time as colima

Both register a docker CLI context and fight over the /var/run/docker.sock symlink and host ports, leaving you with a broken, non-deterministic Docker setup. Quit Docker Desktop (and disable “Start at login”) before using colima.

mountType / vmType are fixed when the VM is created

The --mount-type / --vm-type flags are silently ignored on an existing VM. If your colima VM was created with sshfs, recreate it — this destroys the VM’s containers, images and volumes:

colima delete && colima start --vm-type vz --mount-type virtiofs --memory 8 --cpu 4

Memory and CPU, by contrast, can be changed on a plain restart: colima stop && colima start --memory 8 --cpu 4.

Once the runtime is up, run the containerlab commands in this guide from the maintainers’ container — there is no native containerlab binary on Apple Silicon:

Info

For MacOS ARM there is no containerlab executable. You can run the containerlab commands in this guide from within this container provided by the maintainers.

docker run --rm -it --privileged \
--network host \
-v /var/run/docker.sock:/var/run/docker.sock \
-v /var/run/netns:/var/run/netns \
-v /var/lib/docker/containers:/var/lib/docker/containers \
--pid="host" \
-v $(pwd):$(pwd) \
-w $(pwd) \
ghcr.io/srl-labs/clab bash

Step 1 - Cloning the repo

The first step is to clone the Example orchestrator repository using:

git clone https://github.com/workfloworchestrator/example-orchestrator.git

At this point, you have a functional environment to start play with. This includes:

• The orchestrator (core and GUI)
• NetBox (the entire stack including database, workers, etc…)
• LSO (to run ansible playbooks)
• An example ContainerLab topology based on Nokia SR Linux.
• Some examples of Ansible playbooks

The directory contains at least these files and directories:

$ ls -1
alembic.ini
ansible
clab
db
docker
docker-compose.yml
main.py
migrations
products
README.md
services
settings.py
templates
translations
utils
workflows
wsgi.py

Step 2 - Preparing the environment

Check port availability

The environment requires several ports to be free. Use the command matching your OS to check if any are in use.

On Linux you can use netstat or ss:

# net-tools
netstat -tulnp | grep -E ':80|:3000|:4000|:5432|:5678|:8000|:8001|:8080'

# iproute2
ss -tulnp | grep -E ':80|:3000|:4000|:5432|:5678|:8000|:8001|:8080'

On macOS:

lsof -nP -iTCP -sTCP:LISTEN | grep -E ':80 |:3000 |:4000 |:5432 |:5678 |:8000 |:8001 |:8080 '

No output means that all required ports available. Otherwise, track down and stop the corresponding processes before continuing.

Setup variables

Load the required environment variables:

source .env.workshop

Pull and build images

Just in case you have any of the docker images cached on your machine we’ll explicitly pull and build them.

docker compose pull
docker compose build

Step 3 - Starting the environment

Now we can start the containers:

docker compose up -d

You should be able to view the applications here:

1. Orchestrator ui: Frontend: http://localhost:3000
2. Orchestrator backend: REST api: http://localhost:8080/api/redoc and Graphql API: http://localhost:8080/api/graphql
3. NetBox (admin|admin): NetBox: http://localhost:8000

Note

Take your time to familiarize with the applications and make sure they are working correctly. If anything is wrong, inspect the results of these commands:

# Check the status of all services
docker compose ps

# Follow the logs of all services
# It can be helpful to keep this command running in a separate terminal
docker compose logs -tf -n 5

Step 4 - ContainerLab

Now that we have our orchestrator stack running, we can spin up the ContainerLab topology:

cd clab
containerlab deploy

At the end of this process we can use containerlab inspect to check the status of our topology:

╭───────────────────────┬──────────────────────────────┬─────────┬────────────────╮
│          Name         │          Kind/Image          │  State  │ IPv4/6 Address │
├───────────────────────┼──────────────────────────────┼─────────┼────────────────┤
│ clab-orch-demo-ams-pe │ srl                          │ running │ 172.18.0.12    │
│                       │ ghcr.io/nokia/srlinux:25.7.1 │         │ N/A            │
├───────────────────────┼──────────────────────────────┼─────────┼────────────────┤
│ clab-orch-demo-lon-pe │ srl                          │ running │ 172.18.0.11    │
│                       │ ghcr.io/nokia/srlinux:25.7.1 │         │ N/A            │
├───────────────────────┼──────────────────────────────┼─────────┼────────────────┤
│ clab-orch-demo-par-p  │ srl                          │ running │ 172.18.0.13    │
│                       │ ghcr.io/nokia/srlinux:25.7.1 │         │ N/A            │
╰───────────────────────┴──────────────────────────────┴─────────┴────────────────╯

Info

You will see a few deprecation notices about type ixrd2 being deprecated, you can ignore this.

And with the command:

containerlab graph

This will serve a nice rendering of the topology on port 50080.

Info

When using the ContainerLab docker image, this does not work.

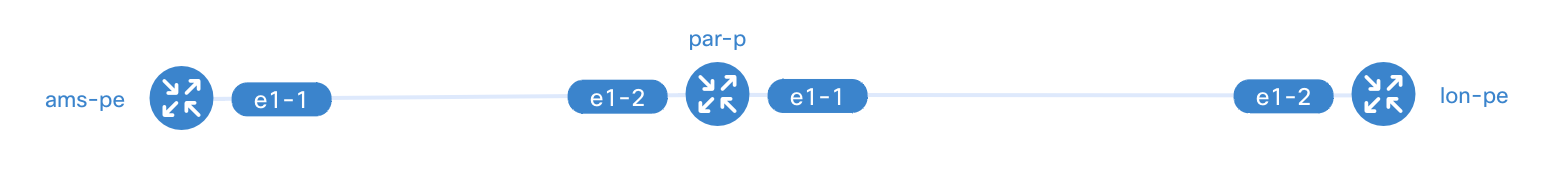

The topology we are going to use is something like this one:

The Example orchestrator used in this workshop already has a number of products pre-configured and ready to be used:

• Nodes (including Ansible to deploy example config)
• Core-links (including Ansible to deploy/delete example config)
• Ports
• L2VPN

We can start feeding initial data into the environment and run some workflows!

Helpful Items

Resetting Your Environment

To completely reset your environment and start from scratch, follow these steps.

If you had ContainerLab deployed, destroy the deployed nodes:

containerlab destroy

Stop the docker compose stack and remove all volumes:

docker compose down -v

You can then restart the environment as described above.
