The orchestrator-core provides search functionality to find data within the Postgres DB.

The below overview describes which objects can be searched through which endpoint, and the underlying search implementation.

Object REST endpoint GraphQL endpoint Implementation
Subscriptions /api/subscriptions/search?query= subscriptions(query: "...") Subscription Search
Processes processes(query: "...") Filter on DB table
Product Blocks product_blocks(query: "...") Filter on DB table
Products products(query: "...") Filter on DB table
Resource types resource_types(query: "...") Filter on DB table
Workflows workflows(query: "...") Filter on DB table

There are 2 implementations:

  1. Filter on DB Table: generic implementation to search on values in the DB table for an object, or related tables
  2. Subscription Search: specialized implementation to search for values anywhere in a subscription, such as instance values or customer descriptions

Usage

Call the REST or GraphQL endpoint with the query parameter set to the search query.

Some search query examples for Subscriptions:

Query Matches subscriptions with
test test in any field
description:test test in description field
L2VPN L2VPN in any field
tag:L2VPN L2VPN in product tag field
tag:(FW \| L2VPN)
Or:
tag:FW \| tag:L2VPN		 FW OR L2VPN in product tag field
description:test tag:L2VPN test in description field and L2VPN in product tag field
description:test -tag:L2VPN test in description field and NOT L2VPN in product tag field
test 123
Or:
123 test		 test AND 123 anywhere
"test 123" test 123 anywhere (Phrase search)
test* any field starting with test (Prefix search)

Note that:

  • For other objects the query syntax is the same
  • Searching is case-insensitive
  • Ordering of words does not matter (unless it is a Phrase)
  • Search words cannot contain the characters |-*():" as they are part of the search query grammar

Implementation 1: Filter on DB Table

This implementation translates the user's search query to WHERE clauses on DB columns of the object's DB table. For some objects this extends to related DB tables.

We can distinguish these steps:

  • The module search_query.py parses the user's query and generates a sequence of sqlalchemy .filter() clauses
  • The REST/GraphQL endpoint appends these clauses to the sqlalchemy select() to find objects that match the user's query

This is a specialized implementation to allow searching values anywhere in a subscription or in related entities, without sacrificing performance.

We can distinguish these steps/components:

  • The DB view subscriptions_search is a search index with Text Search (TS) vectors. Both are explained in the next sections
  • The module search_query.py parses the user's query into a string that is used to create a TS query
  • The TS query is wrapped in a single sqlalchemy .filter() clause to match TS documents in subscriptions_search and get the corresponding subscription_id
  • The REST/GraphQL endpoint appends this clause to the sqlalchemy select() to find subscription objects that match the user's query

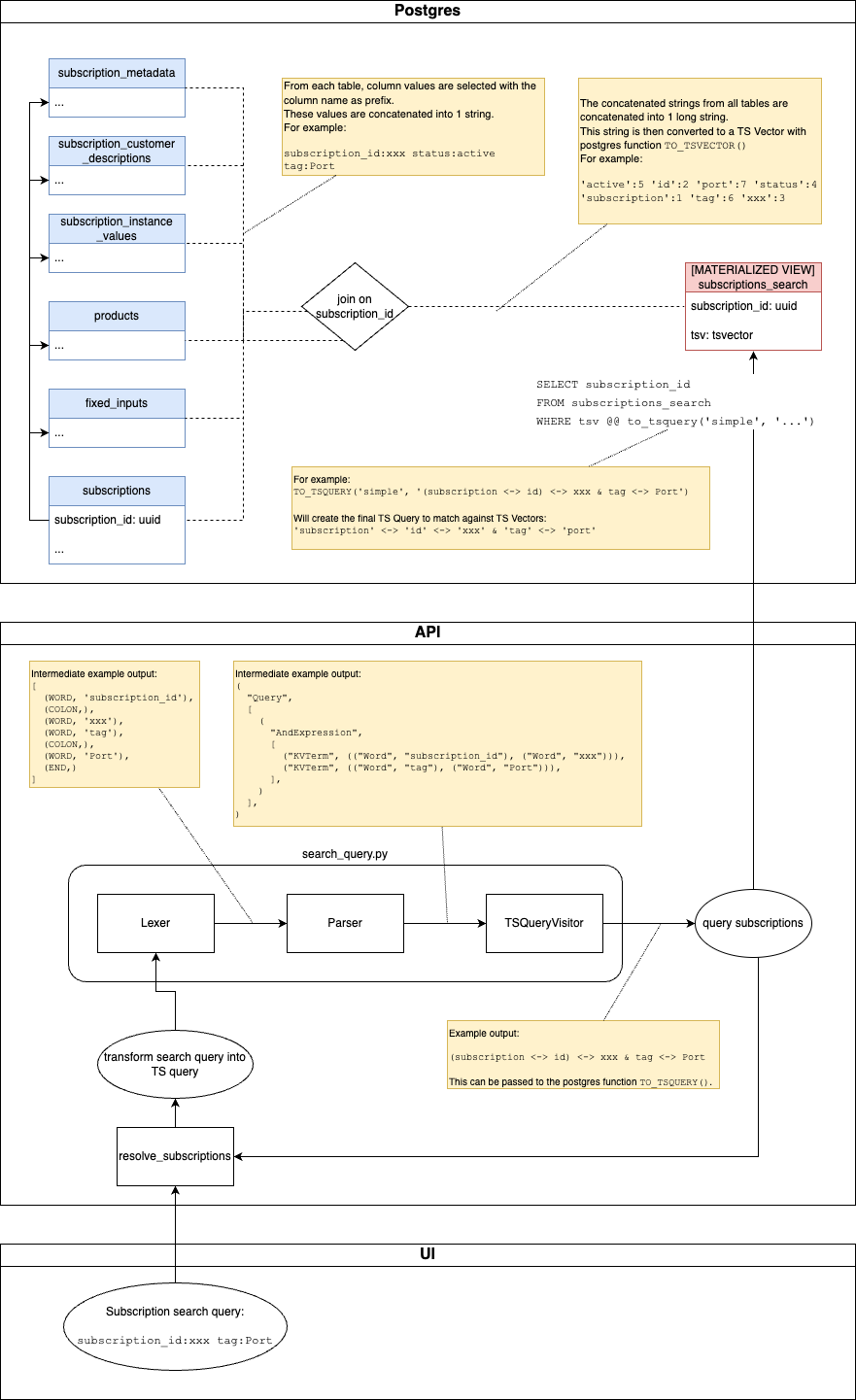

The diagram below visualizes the flow and dependencies between components in the Database, API and Frontend.

Diagram search

Postgres Text Search

Postgres Full Text Search (TS) has extensive documentation but we'll cover the fundamentals in this section. TS queries can be done on "normal" DB tables, i.e. without a search index, but this is too slow. It is recommended to maintain a search index which we do in DB view subscriptions_search.

Creating TS vectors

The query behind subscriptions_search retrieves Subscriptions joined with several other tables (as shown in the previous diagram), forming a "document" of keywords that in some way relate to the subscription.

Each document is turned into a tsvector with Postgres function to_tsvector() which consists of these phases:

  • Parse document into tokens: split text into tokens using special characters as delimiters
  • Convert tokens into lexemes: a lexeme is a normalized token, i.e. this folds upper-case to lower-case. This step can also normalize based on language, but we disable that by using the 'simple' dictionary (shown in diagram above)
  • Create vector optimized for search: store array of lexemes along with positional information

The array of lexemes makes up the tsvector document that we store in subsriptions_search, and which we can query through the Postgres function to_tsquery().

We'll demonstrate how this works through a few examples. You can follow along in any postgres shell (v14 or above). If you have Docker installed, run these commands in separate shells.

docker run --rm -e POSTGRES_HOST_AUTH_METHOD=trust --name pg15 postgres:15
docker exec -i -t pg15 su - postgres -c psql

Translating the input text 'color:Light_Blue count:4' to a tsvector:

postgres=# select to_tsvector('simple', 'color:Light_Blue count:4');
                 to_tsvector
----------------------------------------------
 '4':5 'blue':3 'color':1 'count':4 'light':2
(1 row)

The result '4':5 'blue':3 'color':1 'count':4 'light':2 is an array of lexemes combined with information about their position in the original text.

With Postgres function to_tsdebug() one can investigate how the input was parsed.

postgres=# select * from ts_debug('simple', 'color:Light_Blue count:4');
   alias   |   description    | token | dictionaries | dictionary | lexemes
-----------+------------------+-------+--------------+------------+---------
 asciiword | Word, all ASCII  | color | {simple}     | simple     | {color}
 blank     | Space symbols    | :     | {}           |            |
 asciiword | Word, all ASCII  | Light | {simple}     | simple     | {light}
 blank     | Space symbols    | _     | {}           |            |
 asciiword | Word, all ASCII  | Blue  | {simple}     | simple     | {blue}
 blank     | Space symbols    |       | {}           |            |
 asciiword | Word, all ASCII  | count | {simple}     | simple     | {count}
 blank     | Space symbols    | :     | {}           |            |
 uint      | Unsigned integer | 4     | {simple}     | simple     | {4}
 ```

Note: when we would write "Light-Blue" with a dash instead of underscore, Postgres translates this into the vector `'blue':4 'light':3 'light-blue':2`, which makes it very complicated to query, in particular for UUID strings. To mitigate this we replace all occurrences of `-` with `_` when creating TS Vectors and before executing TS Queries.

**Querying TS Vectors**

To run queries against TS Vectors we have to prepare a TS Query with Postgres function `to_tsquery()`. We also pass the `'simple'` dictionary here to prevent language-specific normalization.
postgres=# select to_tsquery('simple', 'Light_Blue'); to_tsquery

'light' <-> 'blue' ```

The resulting TS query means as much as: the vector must contain 'light' followed by 'blue'. Note that the input string has been tokenized similar to TS vectors.

We can execute this TS query against the TS vector:

postgres=# select to_tsvector('simple', 'color:Light_Blue count:4') @@ to_tsquery('simple', 'Light_Blue');
 ?column?
----------
 t
(1 row)

Returns t for true.

As a final example we can also add an OR condition:

postgres=# select to_tsvector('simple', 'color:Light_Blue count:4') @@ to_tsquery('simple', 'color <-> Green | count <-> 4');
 ?column?
----------
 t
(1 row)

Which returns true because while the vector does not contain the color green, it does contain count 4.

Note that the color <-> Green | count <-> 4 string passed to ts_query() must be constructed in a specific way. This happens in the orchestrator-core module search_query.py as shown in the overview diagram.

As mentioned before, subscriptions_search is a DB view which lies at the heart of the implementation. If you're not familiar with database views; they represent a (usually complicated) database query in the form of a "virtual table".

In this case we're using a Materialized View which is like a normal view, except that the "virtual table" is persisted to save resources and increase performance. The view's data is persisted until it is refreshed, which can be done manually or through an update trigger. (further explained below)

This table has a GIN index for efficient search queries.

Triggers

Database function refresh_subscriptions_search_view takes care of refreshing subscriptions_search. It is called by triggers on the following tables:

  • fi_refresh_search on table fixed_inputs
  • products_refresh_search on table products
  • siv_refresh_search on table subscription_instance_values
  • sub_cust_desc_refresh_search on table subscription_customer_descriptions
  • sub_refresh_search on table subscriptions

The following query shows the current state of the triggers:

SELECT tgname, tgenabled
FROM pg_trigger
where pg_trigger.tgname in
    ('fi_refresh_search',
     'products_refresh_search',
     'sub_cust_desc_refresh_search',
     'siv_refresh_search',
     'sub_refresh_search');

When all triggers are disabled the output looks like:

            tgname            | tgenabled
------------------------------+-----------
 fi_refresh_search            | D
 products_refresh_search      | D
 siv_refresh_search           | D
 sub_cust_desc_refresh_search | D
 sub_refresh_search           | D

And when all triggers are enabled the output looks like this:

            tgname            | tgenabled
------------------------------+-----------
 fi_refresh_search            | O
 products_refresh_search      | O
 siv_refresh_search           | O
 sub_cust_desc_refresh_search | O
 sub_refresh_search           | O

Enabling all triggers is done with these statements:

ALTER TABLE fixed_inputs ENABLE TRIGGER fi_refresh_search;
ALTER TABLE products ENABLE TRIGGER products_refresh_search;
ALTER TABLE subscription_customer_descriptions ENABLE TRIGGER sub_cust_desc_refresh_search;
ALTER TABLE subscription_instance_values ENABLE TRIGGER siv_refresh_search;
ALTER TABLE subscriptions ENABLE TRIGGER sub_refresh_search;

Disabling all triggers is done with these statements:

ALTER TABLE fixed_inputs DISABLE TRIGGER fi_refresh_search;
ALTER TABLE products DISABLE TRIGGER products_refresh_search;
ALTER TABLE subscription_customer_descriptions DISABLE TRIGGER sub_cust_desc_refresh_search;
ALTER TABLE subscription_instance_values DISABLE TRIGGER siv_refresh_search;
ALTER TABLE subscriptions DISABLE TRIGGER sub_refresh_search;

The following query returns the number of seconds since the last refresh, which can be useful for debugging.

SELECT extract(epoch from now())::int - coalesce(pg_catalog.obj_description('subscriptions_search'::regclass)::int, 0);

Limitations

Updating the subscriptions_search materialized view is expensive and limited to once every 2 minutes.

This means that when 2 changes happen within, say, 5 seconds of each other, the first change will be picked up directly. However, the second change will only be processed on the next refresh of the view. So during that period the second change will not show up in the search results.
